Shoshin Docs

Appearance

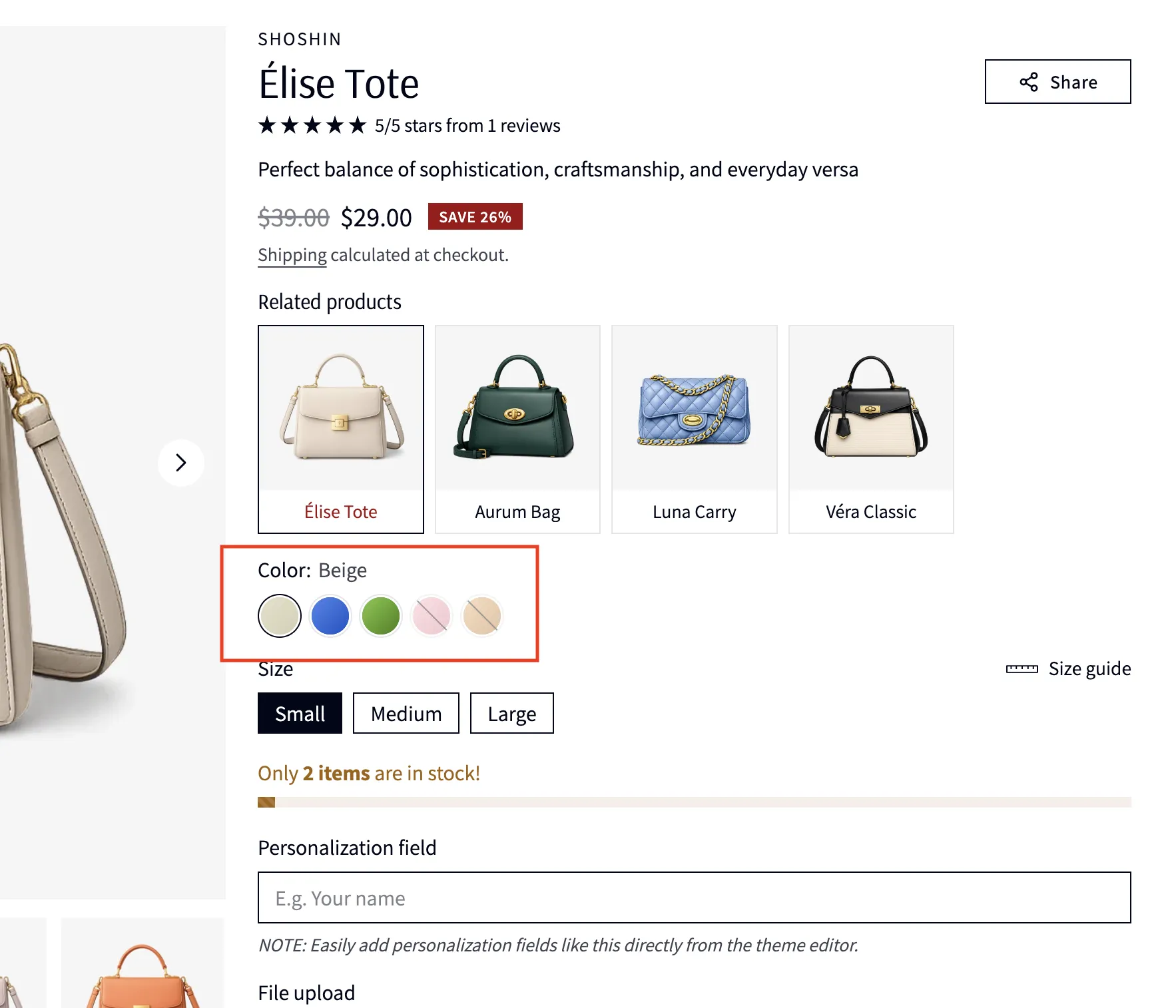

Color swatches ​

Improve the user experience by displaying visual color swatches instead of standard text-based variant options.

Shopify recently introduced native color swatches, removing the need for older workaround solutions. With our premium theme, this feature is fully supported and implemented the Shopify-recommended way, using metaobjects.

If terms like metafields or metaobjects sound intimidating, don't worry. The underlying logic is straightforward, and once set up, it's easy to maintain and scale across products.

Color swatches

How to add color swatches ​

INFO

Shopify provides an official and detailed guide for this setup. For in-depth explanations, refer to:

For a visual walkthrough, you can watch the official video created by the Shopify team, or continue below with our tutorial.

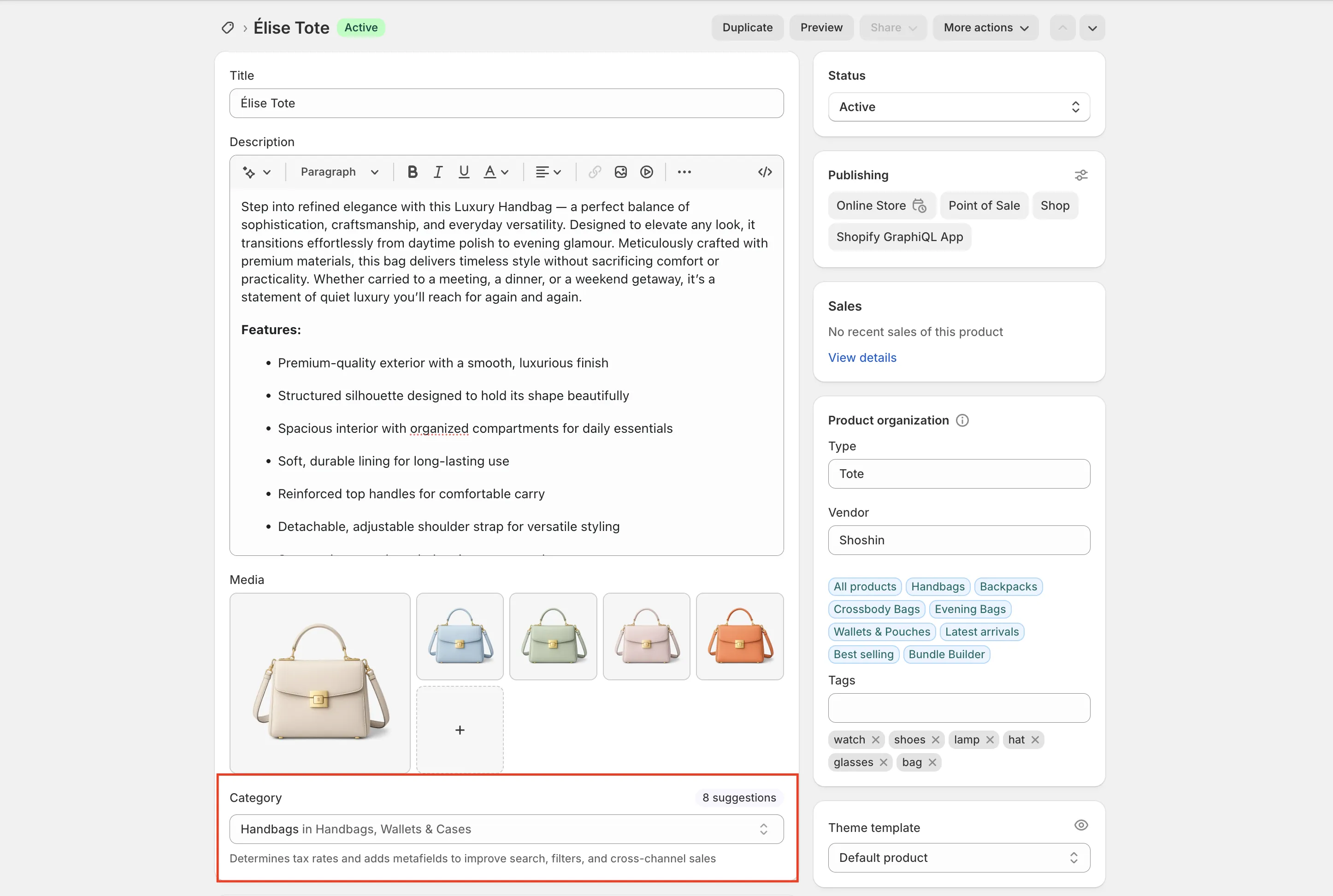

1. Assign the Correct Product Category ​

WARNING

Shopify enables category metafields only when a product has a category.

  1. Go to Products → Select a product
  2. In the Product category field, choose the most relevant category (for example: Bags & Accessories → Handbags)
  3. Save the product

Once a category is assigned, Shopify automatically unlocks relevant metafields, including Color.

Assign category

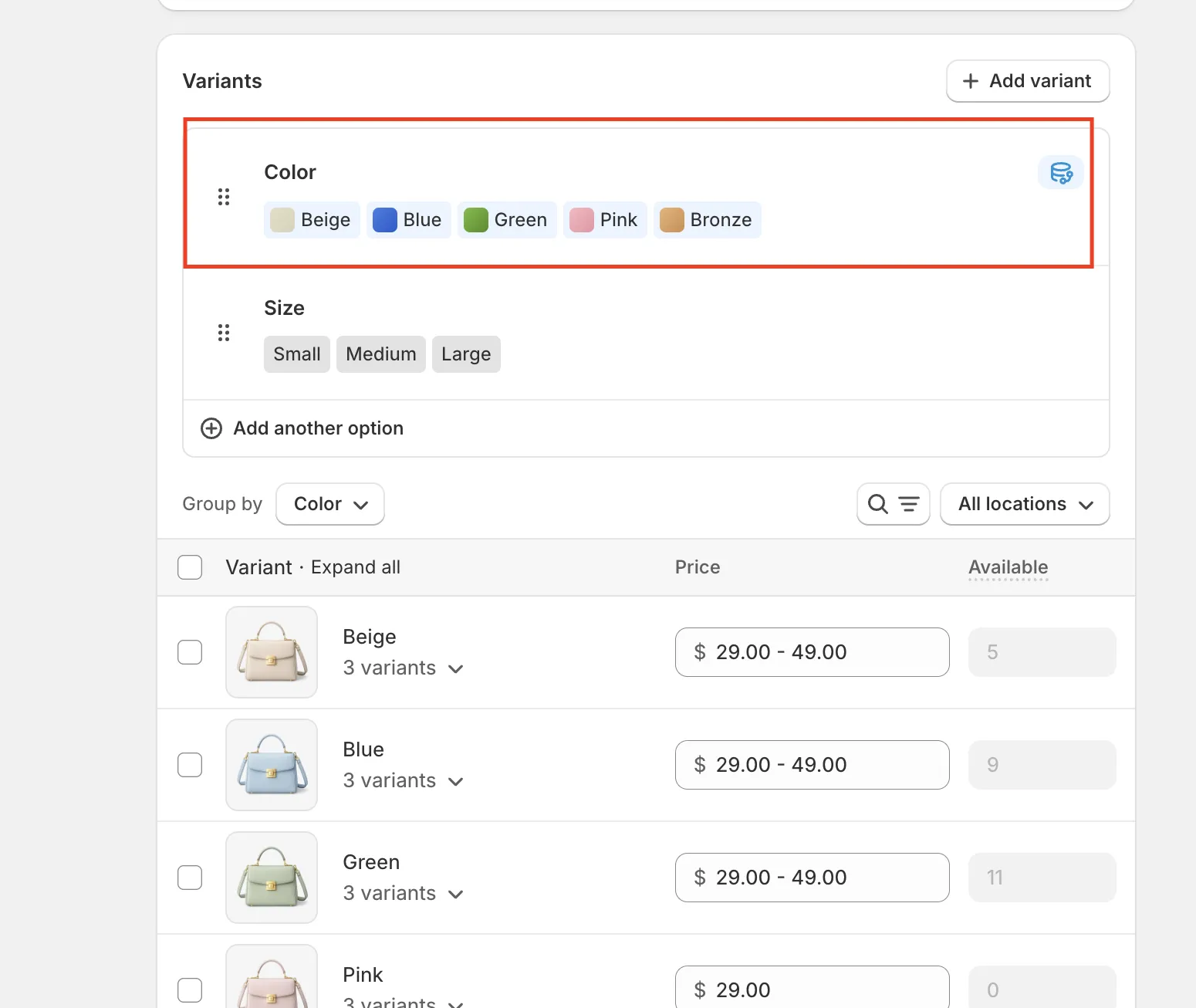

2. Use "Color" as a Variant Option Name ​

Your product variants must use Shopify's expected naming.

  • Variant option name must be exactly: Color
  • Variant values should be human-readable, for example:
    • Black
    • Brown
    • Beige
    • Red

This is important, as Shopify links the Color variant to its internal color metafield logic.

Variant option

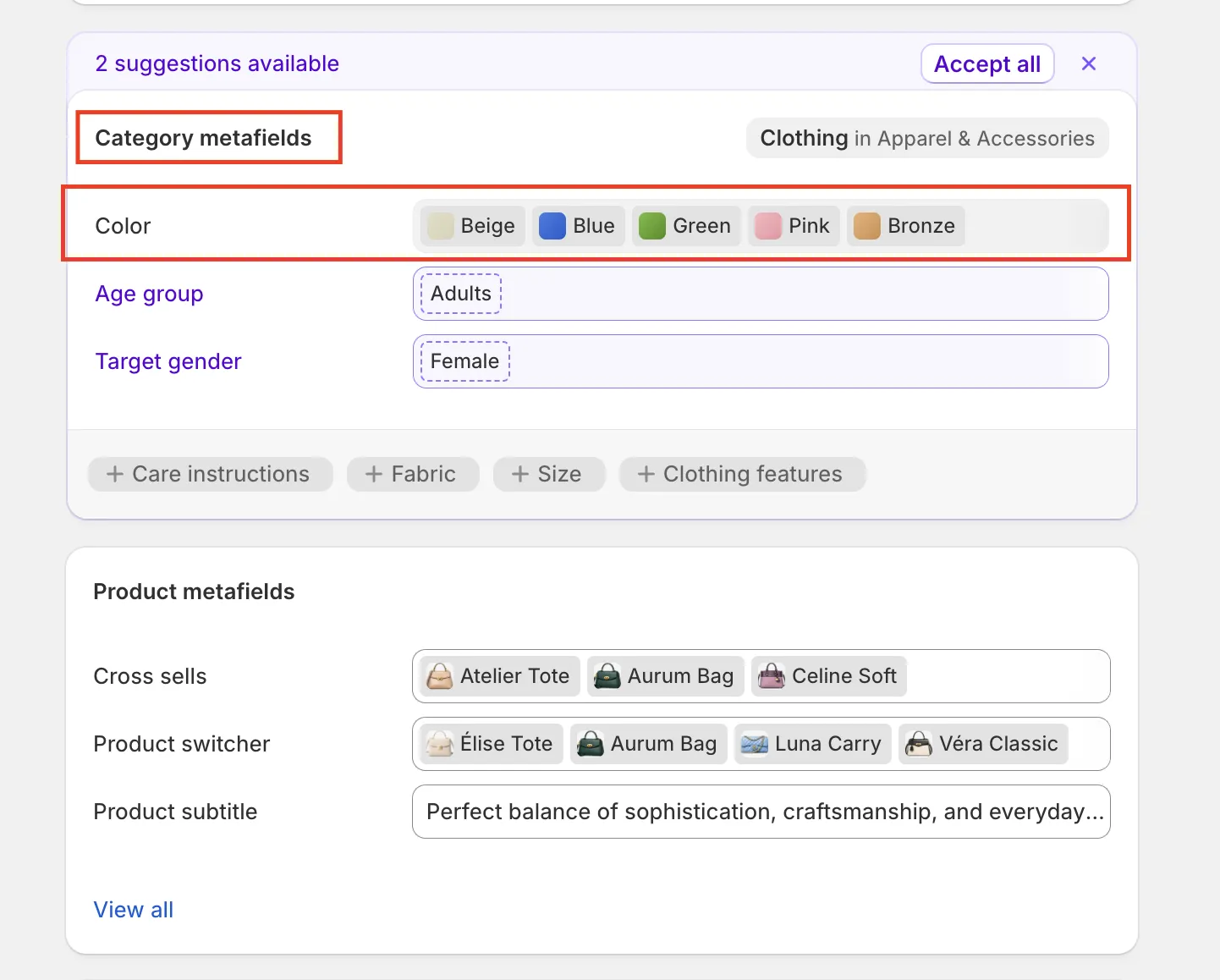

3. Set Up the Color Metafield Values ​

After assigning a category:

  1. Scroll to the Metafields section of the product
  2. Find the Color metafield
  3. Assign the appropriate color entry to match each variant

These color entries are powered by metaobjects, which can include:

  • A color value (hex)
  • A swatch image
  • A label (used as fallback or for accessibility)

You only need to create each color once. After that, it can be reused across all products.

Color metafield

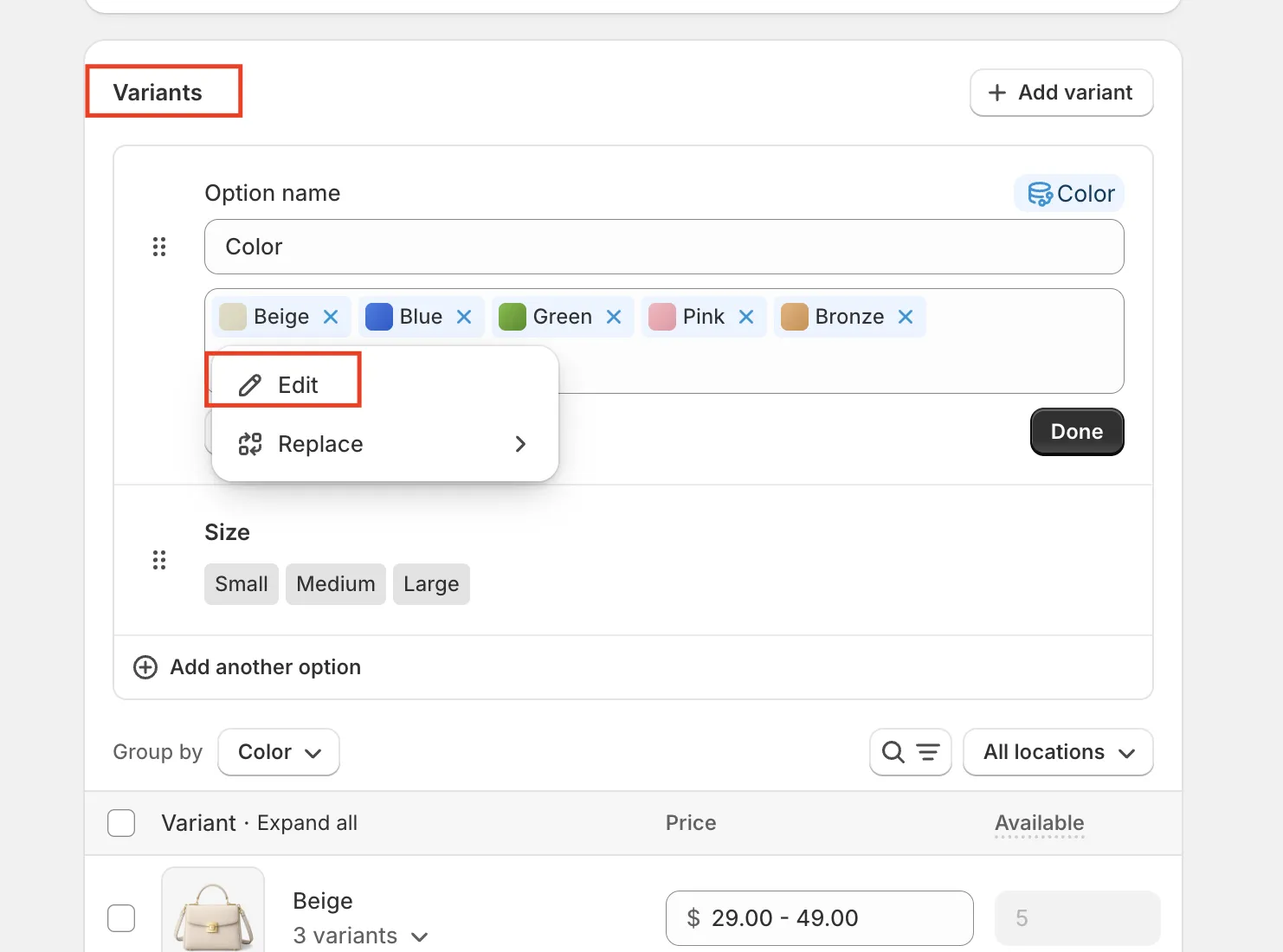

4. Add Swatch Images (Optional but Recommended) ​

For patterns, textures, or non-solid colors:

  • Upload a small square image (recommended 50×50 or 100×100)
  • Shopify will automatically use the image instead of a flat color

Our theme detects this automatically and displays the correct swatch style without extra configuration.

Swatch images

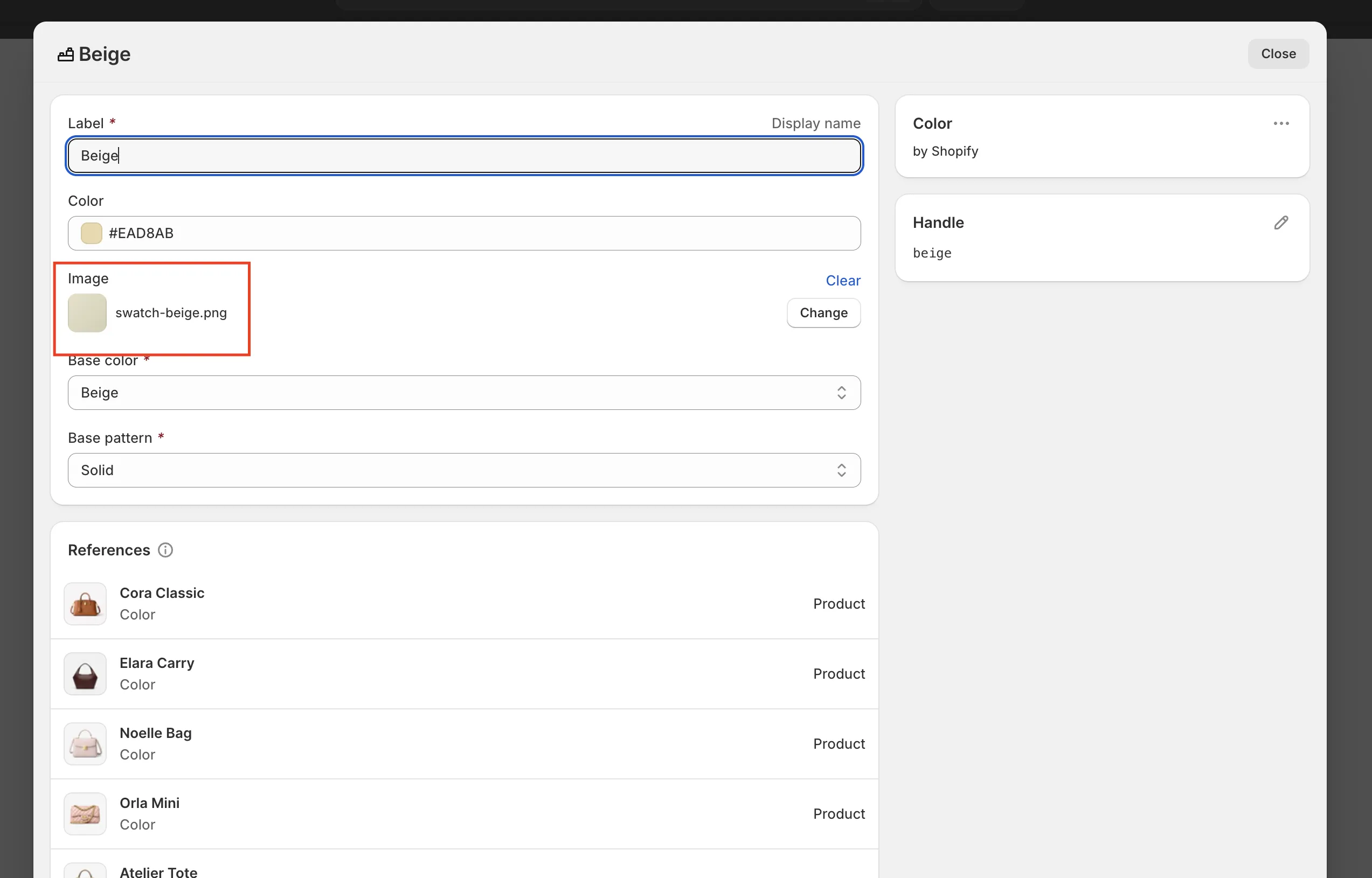

5. Save and Preview ​

Once everything is connected:

  • Save the product
  • Visit the product page on the storefront
  • The Color variant will now appear as visual swatches instead of text

No additional theme settings or custom code are required.

Preview

How the Theme Handles This ​

  • Fully compatible with Shopify category metafields
  • Automatically switches between color swatches and image swatches
  • Includes accessible labels and keyboard support
  • Gracefully falls back to text if a swatch value is missing

This ensures your store stays future-proof and aligned with Shopify's official data model while delivering a premium user experience.
